Description
Dual function of washing and curing

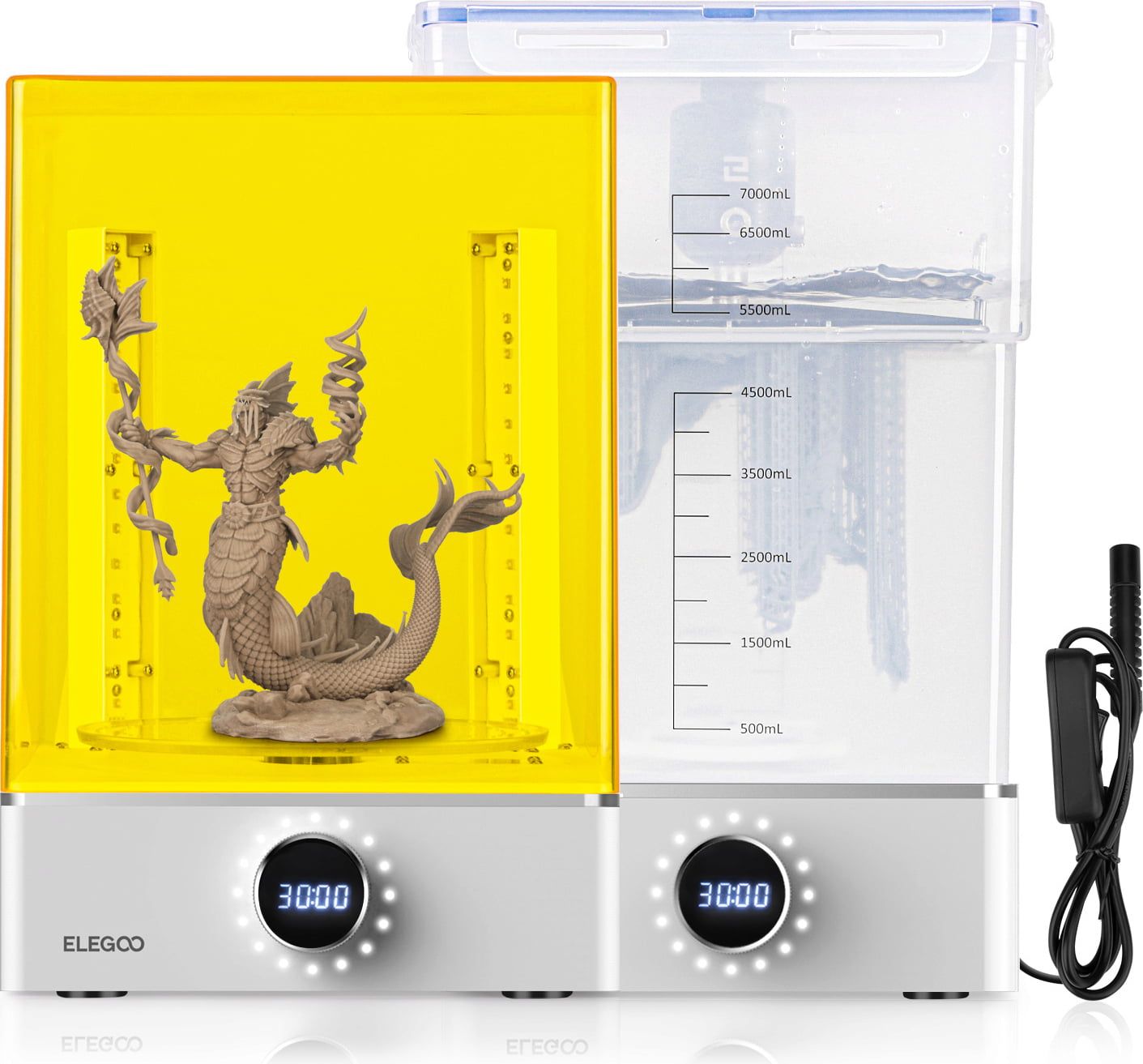

ELEGOO Mercury XS contains 1 washing station and 1 post-curing station, with the dual function of cleaning and curing to remove uncured resin of 3D printed models and optimized your print quality, making your post-processing simple and efficient.
360° all-round exposure
2 adjustable L-shaped light bars and increased 4 LED lights under the 360° rotating turntable paired with Fresnel lens to emit UV light with a uniform wavelength of 405nm, ensuring that the model is evenly exposed from all angles.
A handheld UV lamp
Additionally, there is a handheld UV lamp to cure the interior or nooks and crannies of 3D printed parts for smoother surface and incredible print quality, also ideal for curing assembled models.
Large washing volume
With an 7000ml large capacity sealed water tank, you can directly wash large models printed or clean parts in batches, which offers substantial time savings and improves your productivity.
Friendly Tips: Mercury XS Bundle is perfect match with Mars 3 Pro 3D Printer and Saturn 2 3D Printer, but it need to remove the build plate’s handle before washing the Saturn 2’s prints.
UV Protection Cover
The transparent cover of the curing machine can block up to 99.9% of ultraviolet rays to improve resin solidification rate and protect your eyesight during curing process. A safety option automatically switches off the UV lights when you remove the cover.
Convenient Operation Settings
Simply press and hold the knob for 3 seconds to turn on, with a neatly interface for easily operating the washing and curing functions. The settings time can be adjusted for maximum 30 minutes according to your needs.
Operation Instructions
1.
After the model is printed, please clean and blow-dry the model before putting it into the machine.
2.
If the model become yellow after curing, please reduce the curing time. Over curing will lead to a yellowish model.
3.
Recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%.
4.
Please do not use it for more than 40 minutes at a time to avoid overheating
5.
Cure Time: If model diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly.
6.
Special Notes: The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.
Specification of Mercury XS WASH Machine
CONTROL METHOD
Knob + Button
RATED POWER
12W
INPUT VOLTAGE
110V/240V 50/60Hz
TIME SETTING
0-30mins
MACHINE SIZE
255mm*155mm*385.5mm
MAXIMUM WASH VOLUME
(with platform)180mm*121mm*153mm
(without platform)201mm*124mm*255mm
MACHINE NET WEIGHT
2.27kg
Specification of Mercury XS CURE Machine
CONTROL METHOD
Knob + Button
RATED POWER
36W
INPUT VOLTAGE
110V/240V 50/60Hz
TIME SETTING
0-30mins
MACHINE SIZE
246mm*230mm*363.5mm
MAXIMUM CURING SIZE
200mm*260mm
MACHINE NET WEIGHT
2.4kg
